Features
1 .According to different products, the heating speed can be adjusted;
2. Welding joints of special materials to ensure that the product is evenly stressed;
3. Equipped with vacuum function, it is easier to adjust the alignment;
4. The temperature is numerically controlled, clear and precise, touch screen operation, Chinese and English display interface, PLC control, simple operation;

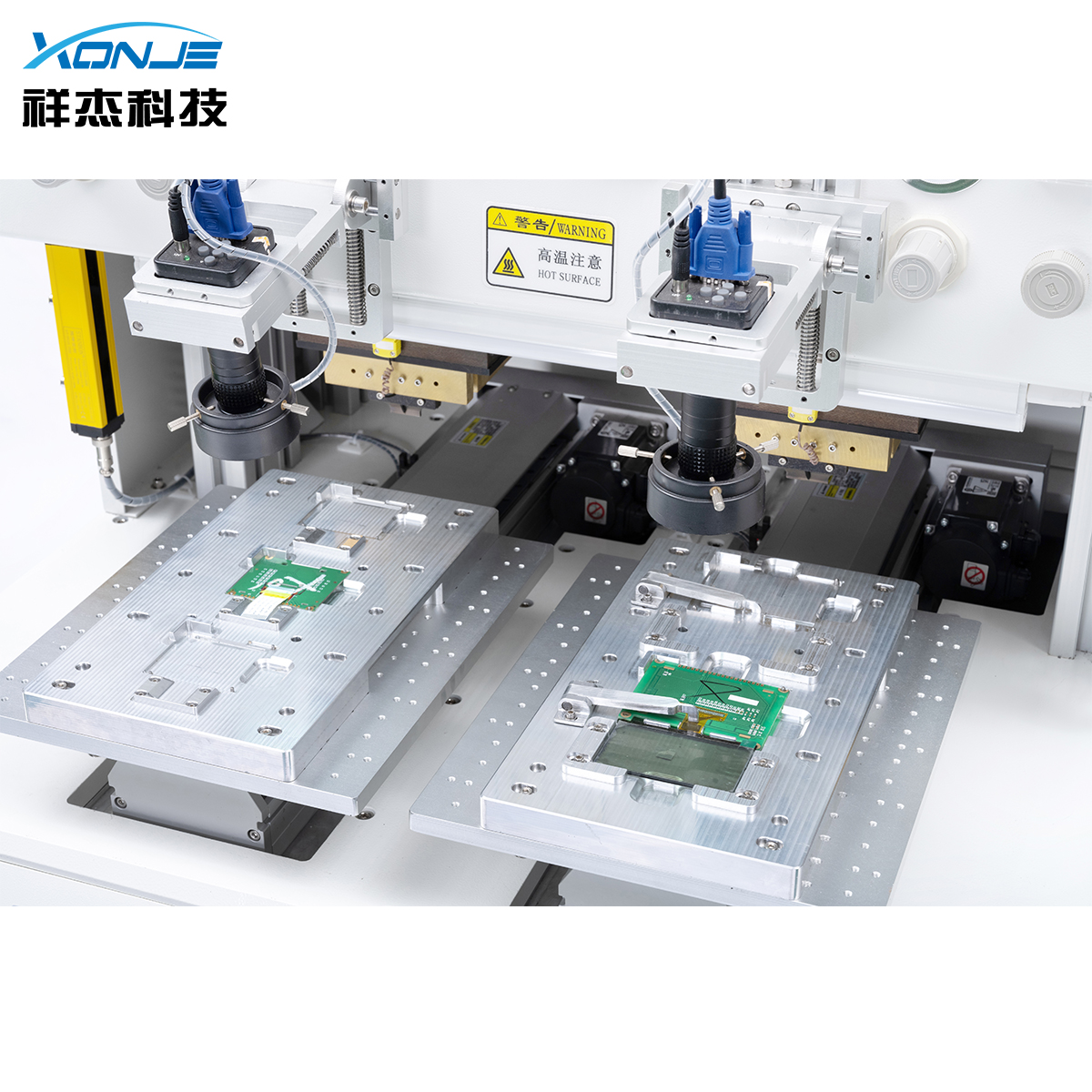

5. Equipped with a digital pressure gauge, the pressure range can be preset, SMC precision guide rail cylinder is used, the pressing precision is high, and the product with the solder joint spacing of 0.5mm can be welded;

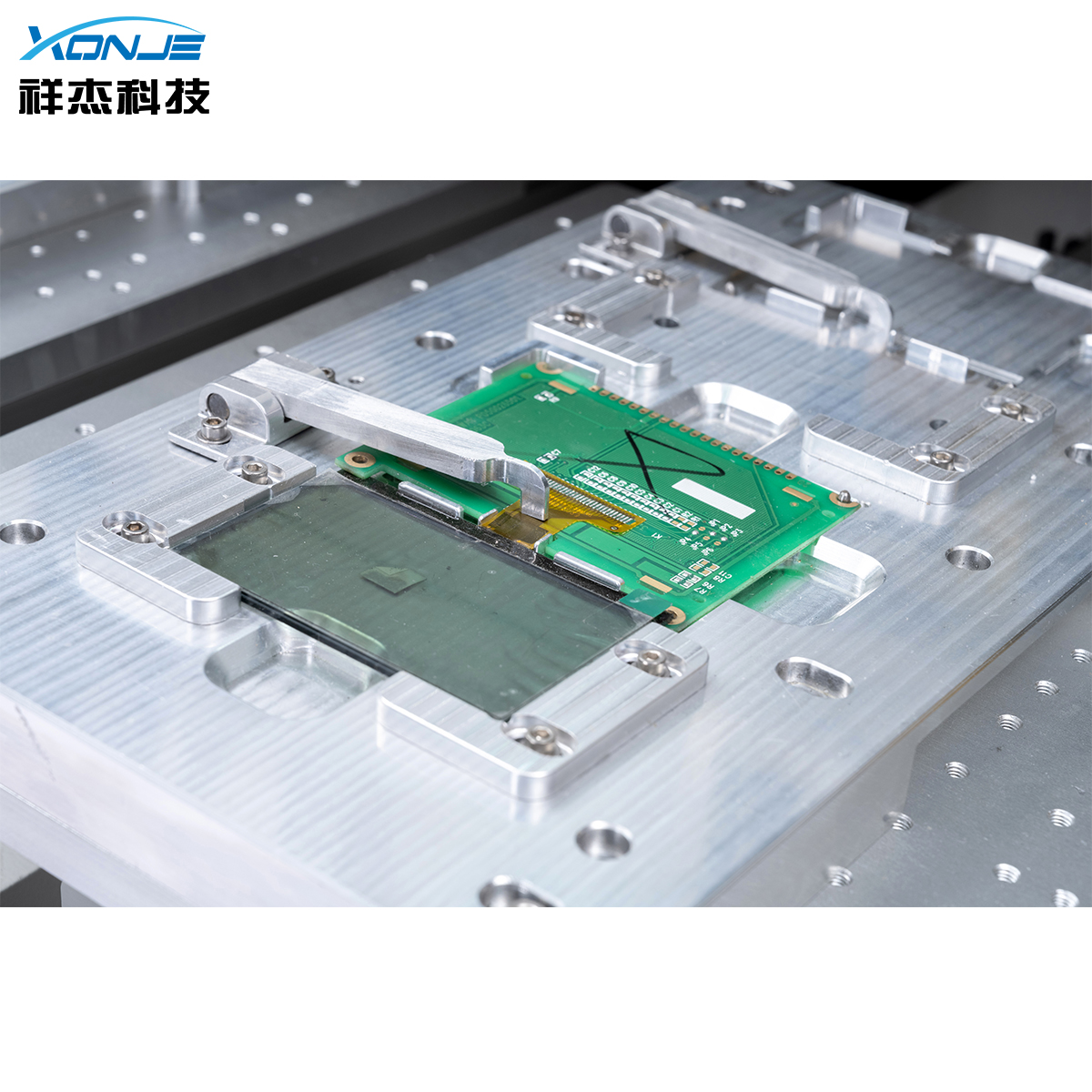

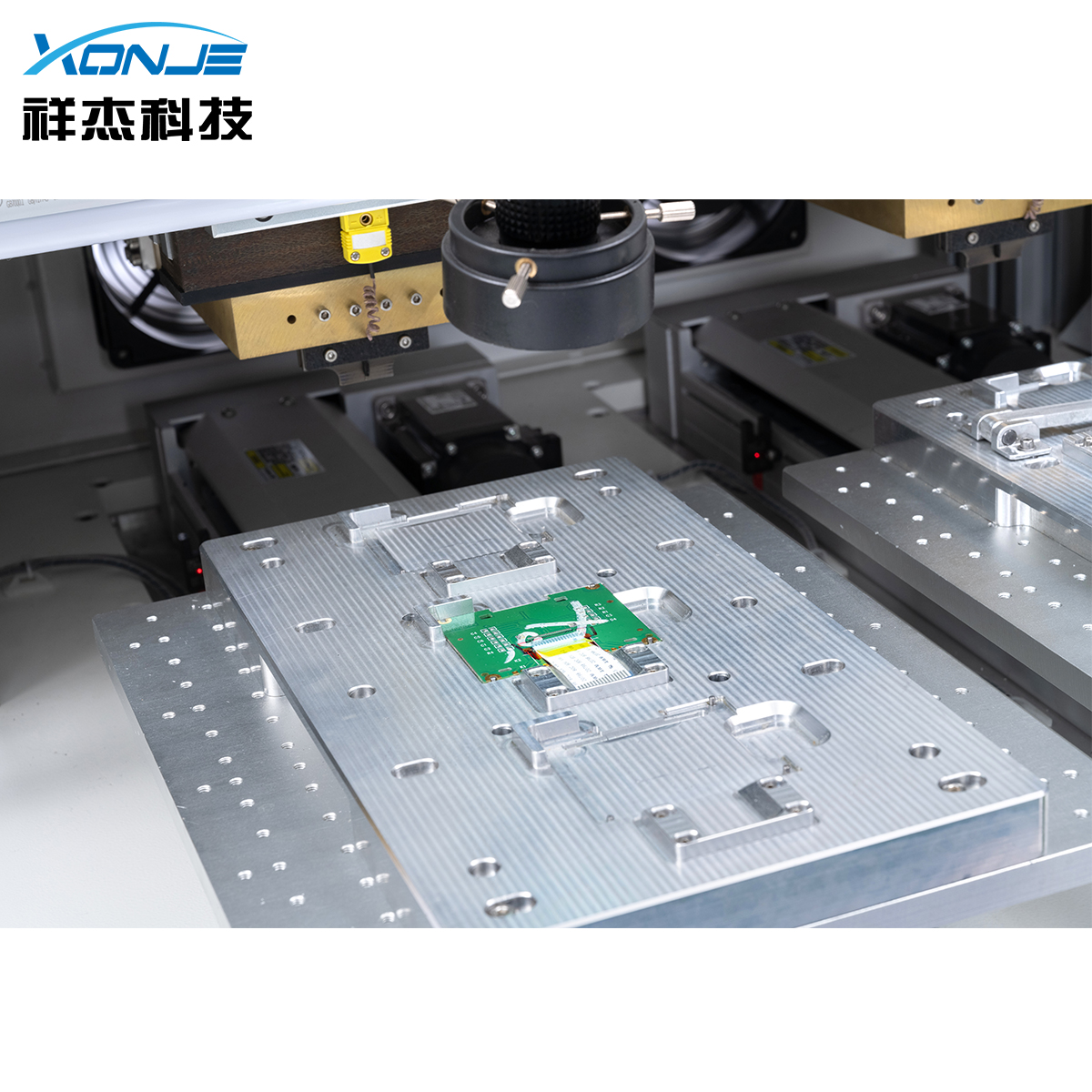

6. Turntable double-station operation, welding of the inner jig, and the operator putting the product on the outer jig, the speed is fast;

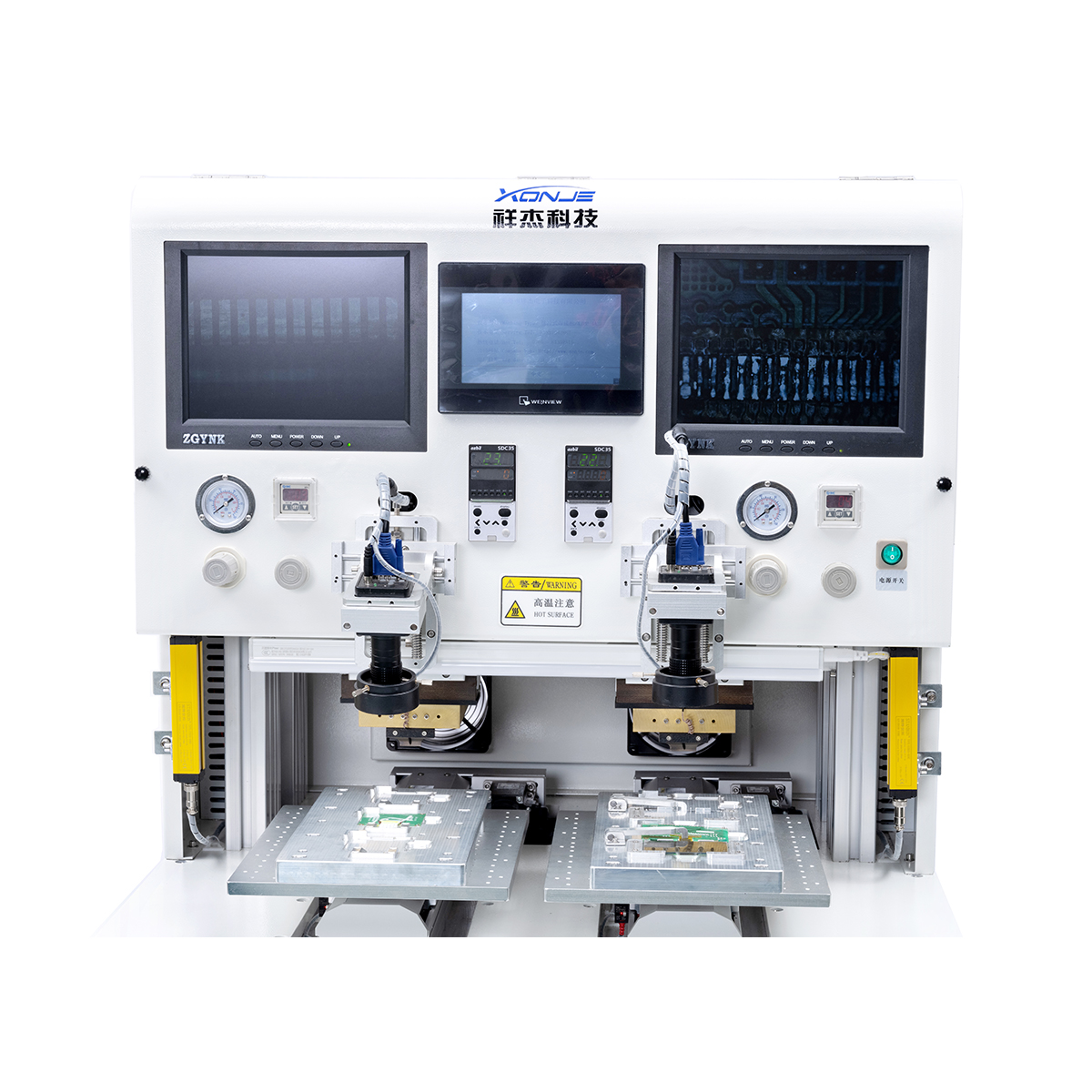

7.Equipped with high-definition CCD magnification and high-definition display alignment check to prevent defective products andensure that the product welding is completely correct;
8.Suitable for various high-density TAB, TCP crimping and FPC, FFC, TFT and PCB solder crimping.
Technical parameter
型號(hào)model
XJPP-5A
定位冶具Positioning fixture
6sets
工作面積Working area
250*300MM
使用電壓Use voltage
220VAC 4.5KW
工作氣壓working pressure
0.5-0.7MPA
機(jī)器重量Machine weight
220KG
長*寬*高（L*W*H）
620*700*700MM
